Aprašymas

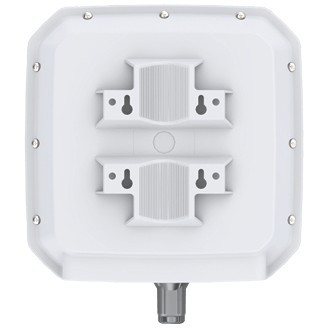

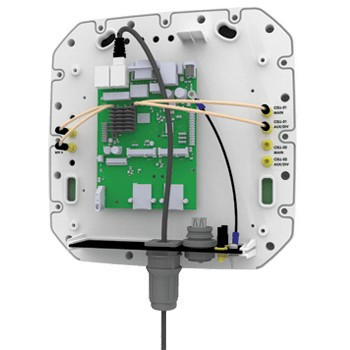

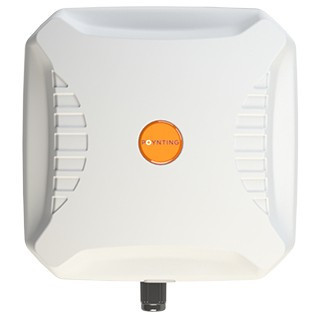

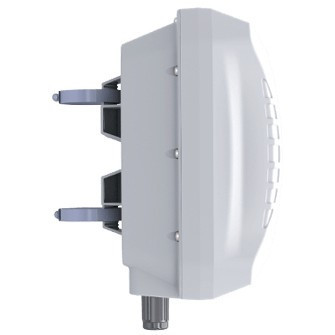

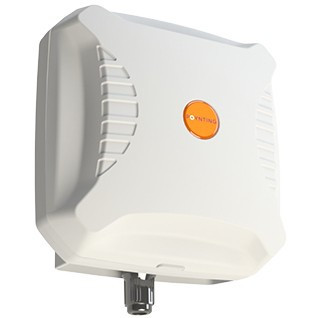

"Poynting EPNT-2. Antenna gain level (max): 11 dBi, Frequency band: 0.617 - 4.2 GHz, Impedance: 50 Ω. Antenna connector type: SMA, Connector gender: Male, Voltage Standing Wave Ratio (VSWR): 3:1. Compliance certificates: CE, RoHS, Certification: MIL-STD 810G/ASTM B117. Width: 260 mm, Depth: 168 mm, Height: 264 mm. Package width: 410 mm, Package depth: 177 mm, Package height: 280 mm"\n"Poynting Antennas introduces the ePoynt series, an innovative antenna enclosure range designed to fit a variety of router modules, transforming the antenna enclosure into high-performance Customer Premises Equipment (CPE). The EPNT-2 enclosure supports routers up to 185 x 145 x 45 mm³, delivering enhanced signal stability and throughput.

Advanced AMC Technology: Incorporates Artificial Magnetic Conductor (AMC) technology from the XPOL-2-5G antenna for superior performance.
Wideband Uni-Directional & Omni-Directional Antennas: Covers 617–960 MHz and 1710–4200 MHz, ideal for 4G & 5G implementations.
Optimised for 4x4 MIMO: Features four cross-polarised cellular antennas – two uni-directional antennas with 11 dBi peak gain and two omni-directional antennas with 5 dBi peak gain.
Integrated Dual-Band Wi-Fi: Includes two omni-directional Wi-Fi antennas covering 2.4 GHz & 5–6 GHz for 2x2 MIMO performance.
Superior Connectivity & Data Throughput: The combination of a high-gain XPOL-2-5G antenna with a world-class router ensures outstanding wireless performance.
Rugged & Weatherproof Design: IP65-rated enclosure ensures durability in harsh outdoor conditions.
The EPNT-2 is the perfect solution for LTE & 5G deployments, providing a powerful, all-in-one antenna and enclosure for superior connectivity and performance."
