Aprašymas

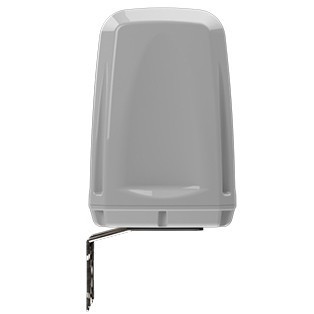

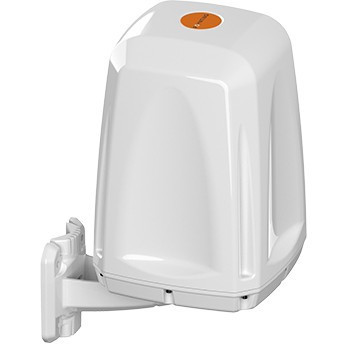

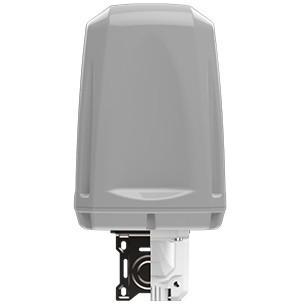

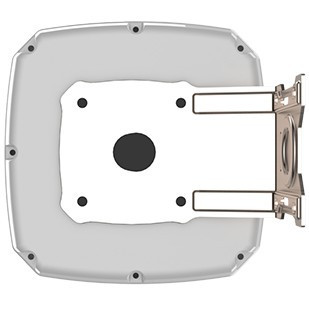

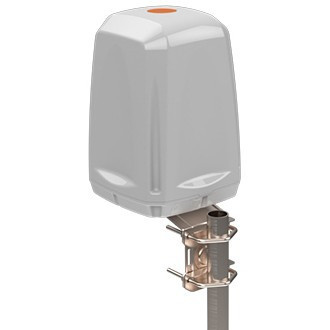

"Poynting EPNT-4. Antenna gain level (max): 3 dBi, Frequency band: 0.617 - 4.2 GHz, Networking standards: IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11g, IEEE 802.11n. Antenna type: Omni-directional antenna, Antenna connector type: SMA, Connector gender: Male. Power source type: DC, Input voltage: 2.7 - 3.3 V. Compliance certificates: CE, RoHS, Certification: MIL-STD 810G/ASTM B117. Width: 238 mm, Depth: 182 mm, Height: 351 mm"\n"Poynting introduces the EPNT-4, an advanced omni-directional Customer Premises Equipment (CPE) solution that integrates multiple high-performance antennas into a single enclosure. Designed for versatility, the EPNT-4 enhances 5G/4G and Wi-Fi performance, making it ideal for reliable communication in demanding environments.

Comprehensive Multi-Antenna System: Features 4x4 5G/4G MIMO, 4x4 Wi-Fi MIMO, and an additional GPS antenna for enhanced connectivity.
Wideband Cellular Coverage: Supports 617–4200 MHz, ensuring excellent gain across major 5G/4G bands for superior multi-carrier aggregation (CA).
High-Performance Wi-Fi Antennas: Dual-band operation covering 2.4 GHz & 5–7.2 GHz with 2.2 dBi peak gain for 4x4 MIMO connectivity.
Cross-Polarised Antenna Elements: Improves signal reception, enhancing overall performance and data throughput.
Optimised for Harsh Environments: Fully saltwater-protected and resistant to corrosive chemicals, thanks to its UV-stable ASA radome material.
Rugged & Weatherproof Design: Built to withstand extreme conditions with IP67 & IK10 ratings, ensuring durability and vandal resistance.
The EPNT-4 is the ideal solution for robust, high-performance connectivity, providing seamless 5G/4G and Wi-Fi integration in even the most challenging environments."
