Aprašymas

"Digitus HDMI HDBaseT™ 3.0 Extender Set, 100 m. Type: Transmitter & receiver, Connectivity technology: Wired, Maximum transfer distance: 100 m. Transmitter video port type: HDMI, Transmitter local video port type: HDMI, Transmitter local keyboard/mouse port type: USB. Receiver local video port type: HDMI, Receiver local keyboard/mouse port type: USB. USB port type: USB Type-A, USB data transfer rates: 480 Mbit/s. AC adapter output voltage: 24 V, AC adapter output current: 1 A"\n"Uncompressed signal transmission in 4K/60Hz, 4:4:4 at 18 GB/s over a distance of 100 m via CAT 6A (or higher) cables

- HDBaseT™ 3.0 technology
- HDMI 2.0b, HDCP 2.2
- Uncompressed signal transmission in 4K/60Hz, 4:4:4 at 18 GB/s
- Transmission distance of up to 100 m via CAT 6A (or higher) cables
- 2x USB-A 2.0 connection on each unit for KVM function (keyboard, mouse, webcam), connection of USB data storage media, etc.
- eARC/ARC function
- PoC (Power over Cable) - Only the unit requires an external power adapter
- R232 signal transmission
- 1x RJ45 (Gigabit Ethernet) network connection on each unit - bi-directional Ethernet transfer
- 1x HDMI loop-out to the transmitter unit

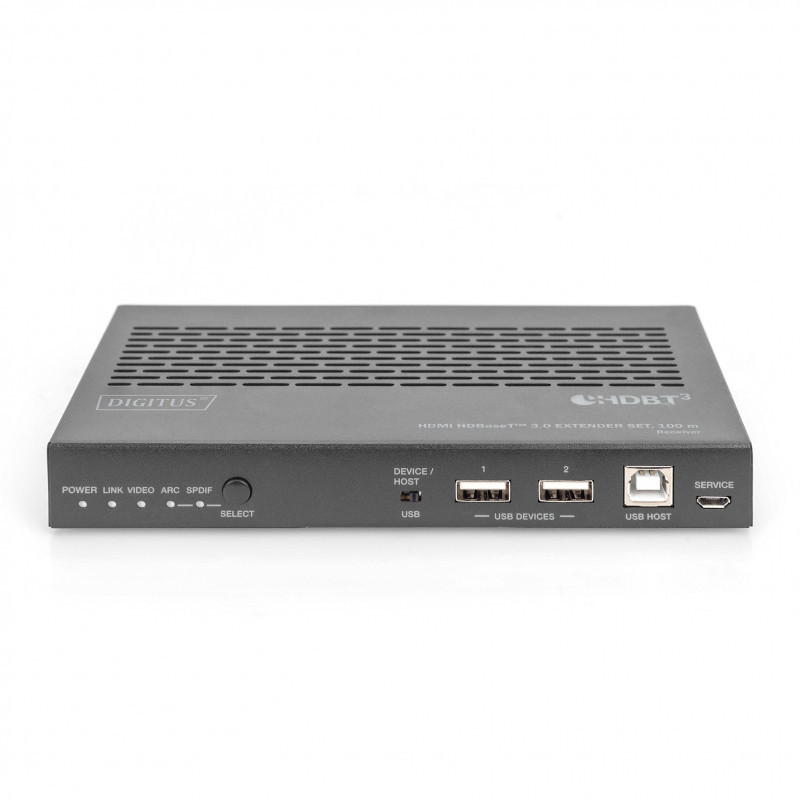

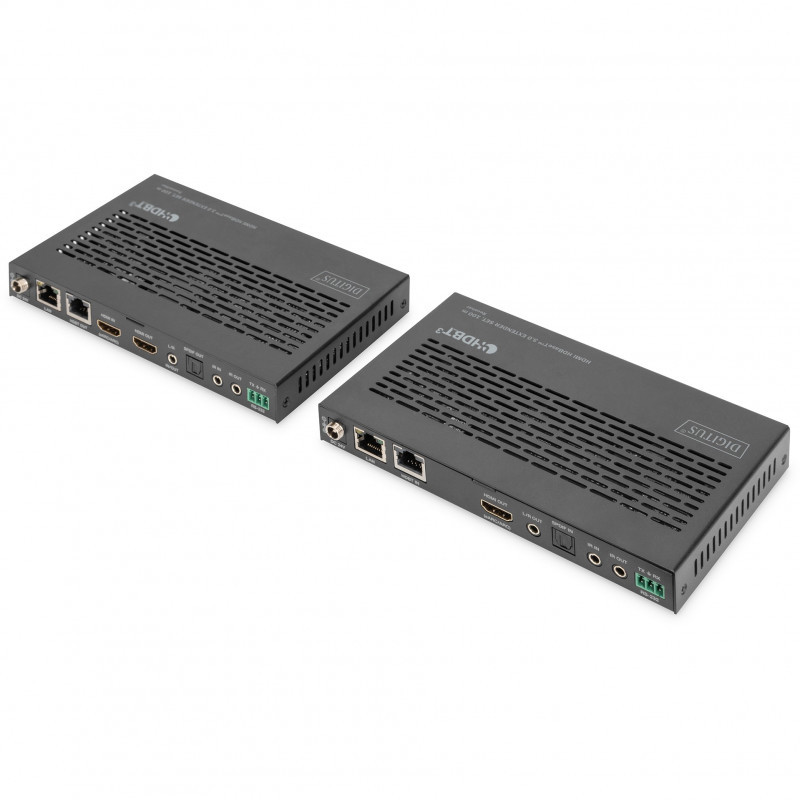

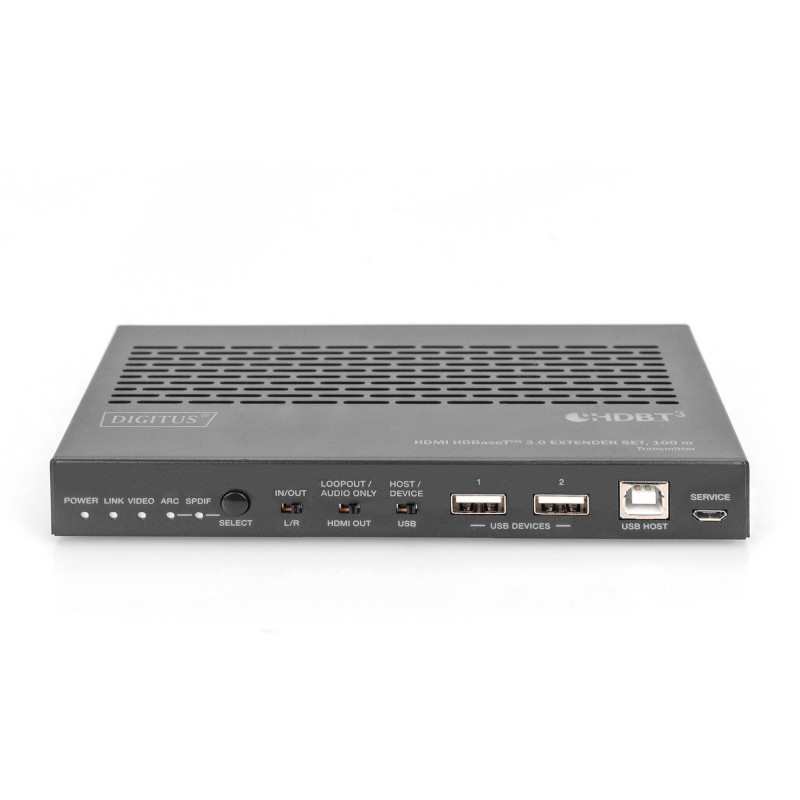

The DIGITUS® HDMI HDBaseT™ 3.0 Extender Set enables uncompressed AV signal transmission in 4K/60Hz, 4:4:4 at 18 GB/s over a distance of 100 m via CAT 6A (or higher) cables. Both on the transmitter and on the receiver, there are two USB-A ""Device"" ports as well as a USB-B ""Host"" connection. This allows USB signals, e.g. for KVM, USB data carriers etc., to be integrated on both ends and connected to the processing PC on the respective opposite end. Both devices can be switched between ""Host"" and ""Device"" mode using a DIP switch. The system enables bidirectional transmission of PoC (Power over Cable) and IR. Via RS232, both devices can be controlled separately. Analog stereo audio decoupling is also available.
Another impressive feature is versatile eARC/ARC compatibility, which enables the connection to new and older audio devices such as AVRs (Audio Video Receiver). Two modes (ARC, S/PDIF) are available here, which can also be toggled very easily using a changeover switch."
