"Trendnet TI-PGM102. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8, Installed SFP modules quantity: 2. Full duplex. MAC address table: 4000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at. DC input voltage: 48 - 55 V. Power over Ethernet (PoE). Wall mountable"\n"Full PoE+ Power Budget
Supplies up to 30W of PoE/PoE+ power per port with a 240W PoE power budget

Network Ports
8 x Gigabit PoE+ ports and 2 x Gigabit slots

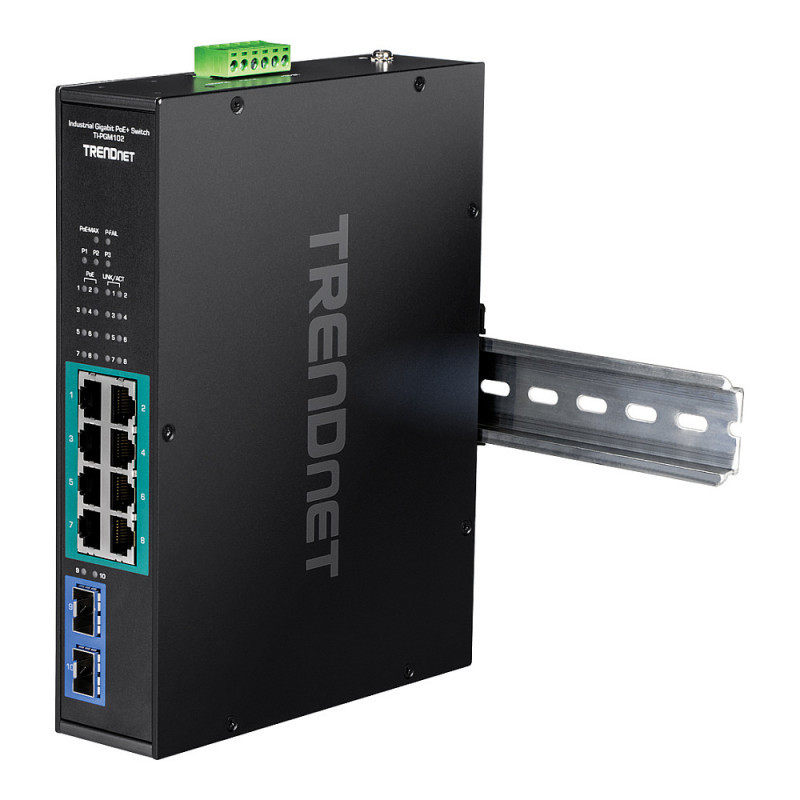

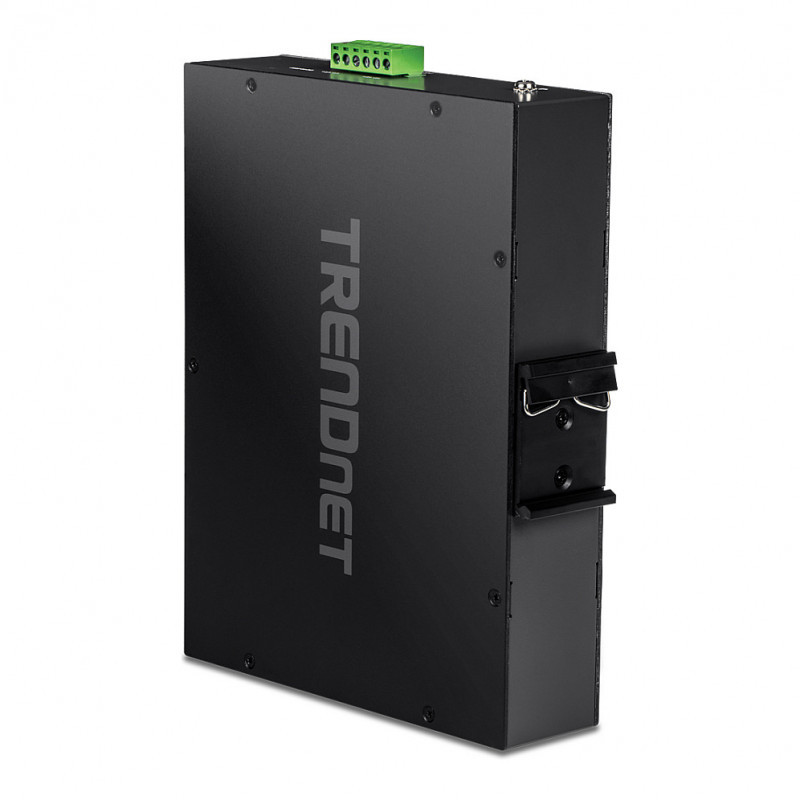

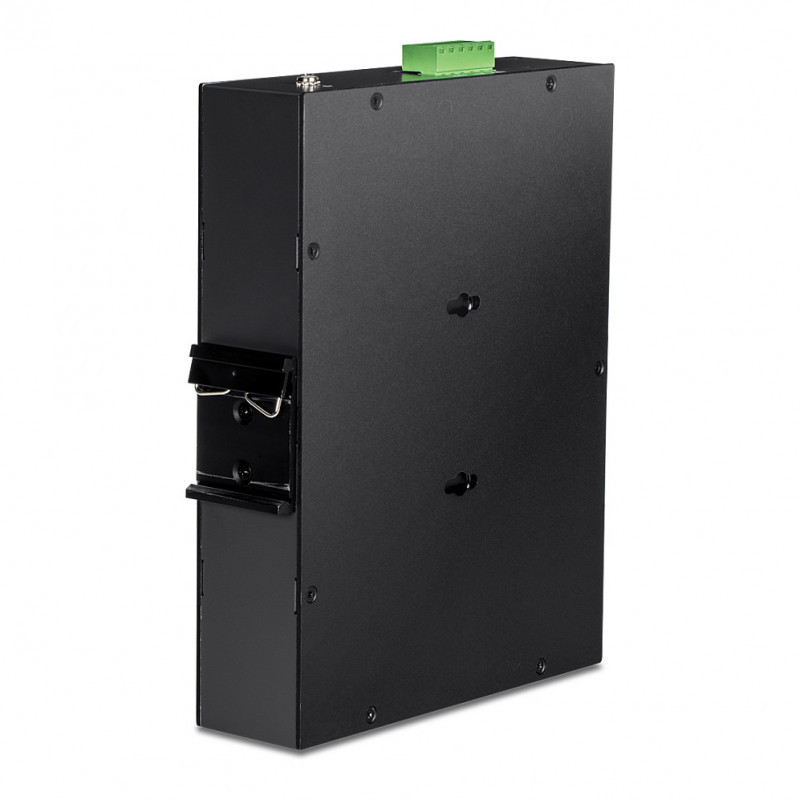

DIN-Rail/Wall Mounts
IP30 rated metal enclosure with included DIN-Rail and wall-mount hardware

Switching Capacity
20Gbps switching capacity

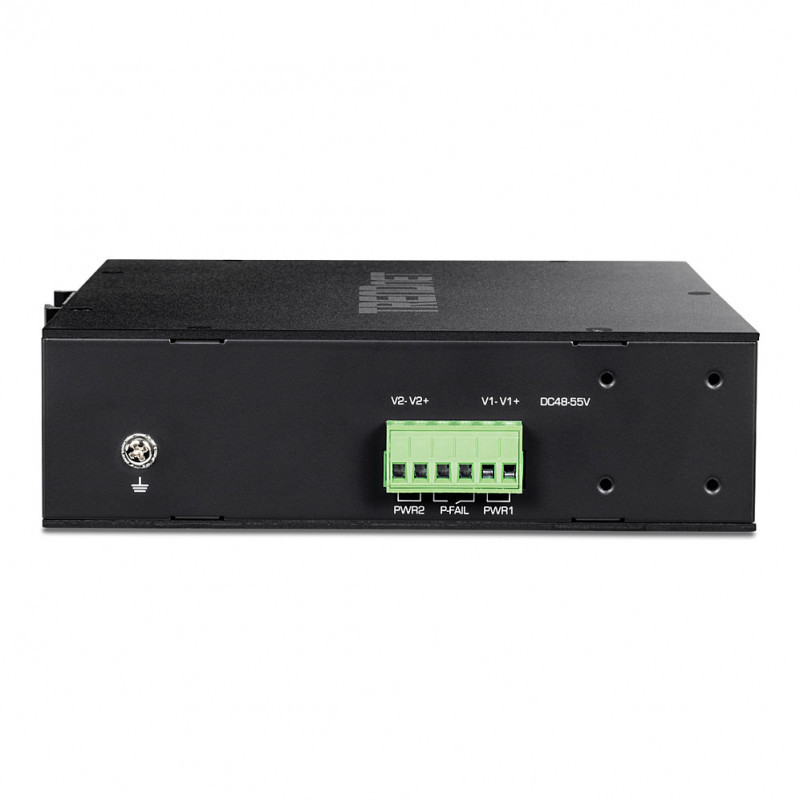

Redundant Power
Redundant power inputs with overload current protection (power supply sold separately, models: TI-S24052, TI-S24048)

Alarm Relay
Alarm relay triggered by power failure of primary and/or redundant power

Jumbo Frame
Sends larger packets, or Jumbo Frames (up to 9KB), for increased performance

Wide Operating Temperature
Rated for an operating temperature range of -20° – 65°C (-4° – 149°F)

Grounding Point
Grounding point protects equipment from external electrical surges"
