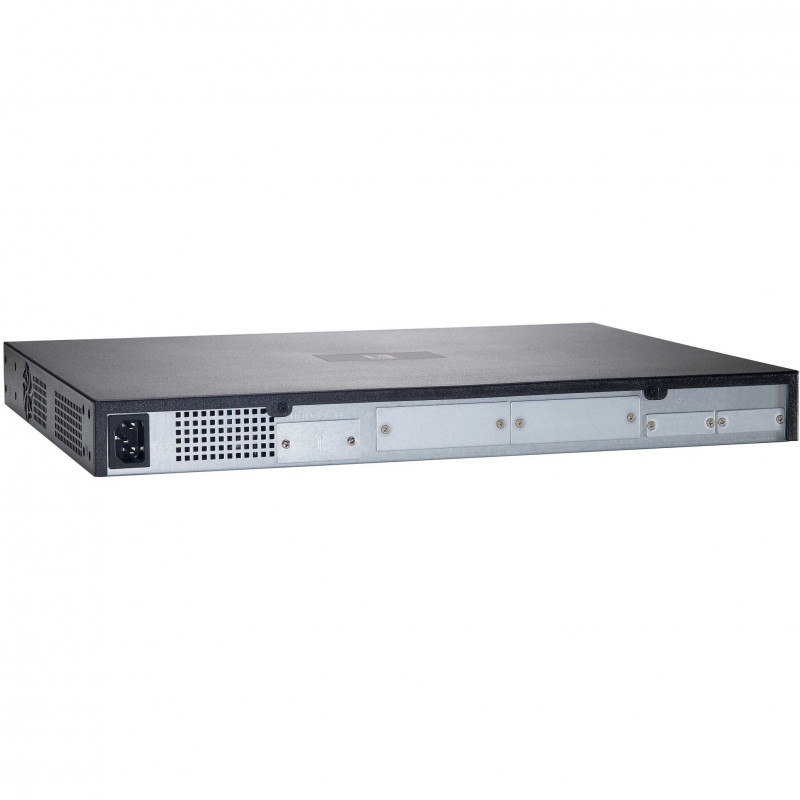

"LevelOne 26-Port Stackable L3 Managed Gigabit Ethernet Switch, 4 Ports SFP/RJ45 Combo, 2 Module Slots 10-Gigabit. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45. Full duplex. MAC address table: 16000 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE.... Rack mounting"\n"The LevelOne GEL-2691 is a Layer 3 Managed switch with 24 x 1000Base-T ports associated with 4 x Gigabit SFP (Small Form Factor Pluggable) slots + 2 optional 10 Gigabit Ethernet Slots for SFP/XFP. This switch is also 19-inch rack-mountable and 1 x redundant power supply connector, which provides convenient and flexible installation.

The switch provides a flexible, web-based management interface SNMP for both IPv4 and IPv6 as well as layer 3 management features. Despite its affordable pricing, the GEL-2691 is equipped with many advanced features such as unicast routes, multicast routing IGMP V1/V2/V3, IGMP v3 proxy, IP VLANs, VLAN trunk, IEEE 802.1d/w/s Spanning Tree, Access Control List (ACL) of up to 512 entries for easy network security, Link Aggregation Control (LACP), IEEE 802.1p QoS with 8 priority queues much more.

An ideal network solution for workgroups and edge deployments, or anyone looking for an affordable and efficient way to expand their network.

- 24 Gigabit Ethernet ports with 4 shared SFP and 2 10-Gigabit slots
- Multicast routing IGMP V1/V2/V3, MLD
- Supports DHCP relay features under Layer 3 protocol
- Supports Access Control List (ACL) authentication of up to 256 entries and port-based security with IEEE802.1X
- IEEE 802.1d/w/s Spanning Tree Protocol (STP) and port mirroring
- IEEE 802.3ad LACP for auto port aggregation
- IEEE 802.1p QoS with 8 priority queues
- Supports IPv4/IPv6 network operation
- Provides QoS control based on IP DSCP for advanced traffic prioritization and bandwidth management"
