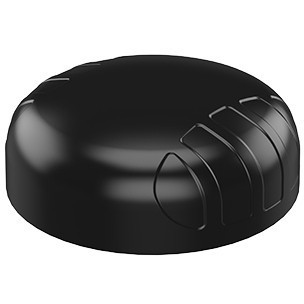

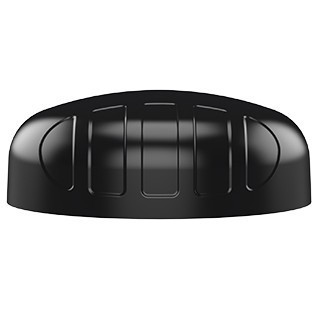

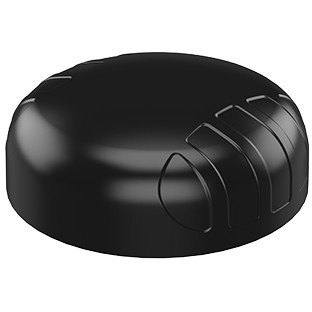

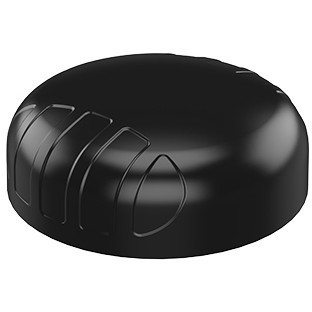

"Poynting A-PUCK-0008-V2-01. Antenna gain level (max): 6.5 dBi, Frequency band: 0.617 - 6 GHz, Gain: 6 dBi. Antenna type: Omni-directional antenna, Antenna connector type: SMA, Connector gender: Male. Compliance certificates: CE, RoHS, Certification: CE, RoHS. Height: 36 mm, Diameter: 9.93 cm, Weight: 476 g. Package width: 150 mm, Package depth: 150 mm, Package height: 120 mm"\n"Poynting’s PUCK range introduces a small-profile, high-performance antenna designed for IoT/M2M, Smart Metering, Smart Utilities, Transportation, Marine, and Agricultural/Farming applications. The PUCK-8 is a 3-in-1 antenna system within a single enclosure, offering reliable and future-proof connectivity for 5G, LTE, and Wi-Fi networks.

Wideband Cellular Coverage: Features 2x Cellular MIMO antennas covering 617 to 6000 MHz, ensuring compatibility with 2G, 3G, 4G, and 5G networks.
Dual-Band Wi-Fi Connectivity: Supports 2.4 GHz, 5 GHz, and 6 GHz bands, compatible with 802.11n, 802.11ac/ax/be standards.
Future-Proof 5G and LTE Implementation: Ultra-wideband performance ensures seamless operation across different operators and evolving cellular technologies up to 6 GHz.
Optimised Radiation Patterns: Provides a balance of omnidirectionality, pattern diversity, and reliable signal performance at the desired elevation.
Compact & Versatile Design: Small form factor enables easy integration across multiple industries while maintaining high-performance capabilities.
Enhanced Connection Stability: Designed to ensure both 5G/LTE ports are connected to the router/device for maximum throughput and performance.
The PUCK-8 is an excellent choice for applications requiring a compact yet powerful antenna solution, delivering strong and stable 5G, LTE, and Wi-Fi connectivity. For SISO applications, other derivatives in the PUCK range may be more suitable."
