Aprašymas

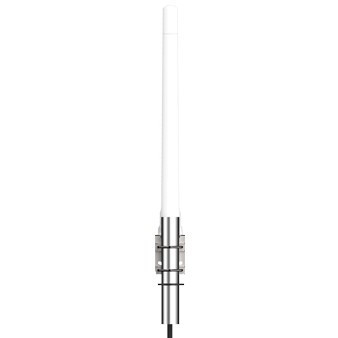

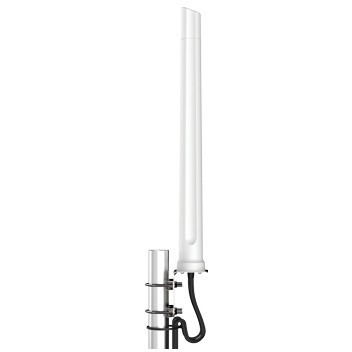

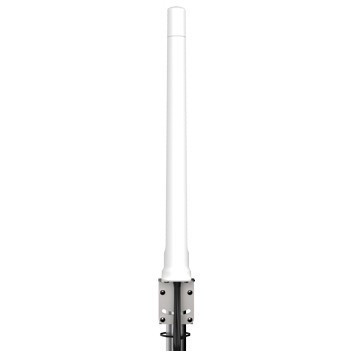

"Poynting A-OMNI-0214-V1-01. Antenna gain level (max): 3.5 dBi, Frequency band: 0.617 - 3.8 GHz, Impedance: 50 Ω. Antenna type: Omni-directional antenna, Antenna connector type: SMA, Product colour: White. Compliance certificates: CE, RoHS, Certification: MIL-STD 810G/ASTM B117. Height: 646 mm, Diameter: 7.1 cm, Weight: 795 g. Package width: 95 mm, Package depth: 96 mm, Package height: 690 mm"\n"The OMNI-214 is a high-performance ultra-wideband antenna, covering all contemporary LTE and 5G frequency bands from 617 to 3800 MHz. With 4x4 MIMO capability, achieved through vertically separated radiating elements within a single radome, this antenna ensures superior pattern control across the entire frequency range. Designed for urban and commercial applications, the OMNI-214 provides reliable signal reception worldwide and is future-proof for emerging network technologies.

Ultra-Wideband Frequency Coverage: Supports 617 to 3800 MHz, covering all LTE and 5G bands.
4x4 MIMO Capability: Utilizes vertically separated radiating elements to enhance network performance and data throughput.
Superior Pattern Control: Ensures stable omni-directional signal distribution for consistent connectivity.
Future-Proof Design: Covers LTE Band 71 (617 to 698 MHz) and CBRS bands (3400 to 3800 MHz) for inland and commercial deployments.
Reliable Global Connectivity: Guarantees strong signal reception in urban, industrial, and commercial environments.
IP65 Protection Rating: Resistant to dust and water ingress, making it ideal for outdoor urban installations.
The OMNI-214 is a future-ready, high-performance antenna, ensuring robust LTE and 5G connectivity for urban and commercial applications requiring stable, high-speed data transmission.

Ideal Applications
- Enhanced LTE/4G and 5G reception
- Increase system transmission reliability
- High-end industrial grade router applications
- Industrial and commercial LTE/5G deployment"
