Aprašymas

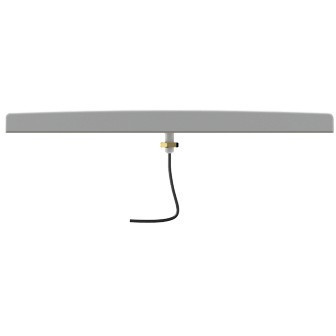

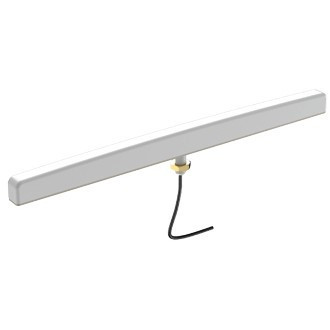

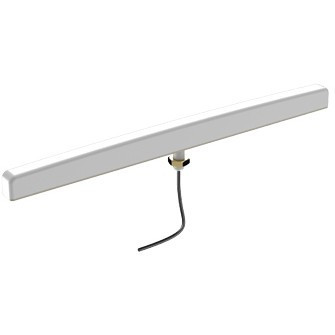

"Poynting A-DASH-0001-01-V1. Antenna gain level (max): 4 dBi, Frequency band: 0.698 - 2.7 GHz, Impedance: 50 Ω. Antenna type: Omni-directional antenna, Antenna connector type: SMA, Voltage Standing Wave Ratio (VSWR): <3:1. Compliance certificates: CE, RoHS, Certification: MIL-STD 810F/ASTM B117. Width: 258 mm, Depth: 13 mm, Height: 34 mm. Package width: 265 mm, Package depth: 15 mm, Package height: 100 mm"\n"The DASH-1 is purposefully designed for low-profile applications, making it ideal for smart meters. Its bi-directional radiation pattern ensures optimal performance for both indoor and outdoor installations, typically mounted on the top or side of smart meter boxes.

Wideband Frequency Coverage: 698–2700 MHz, ensuring reliable LTE connectivity across multiple bands.

Compact & Low-Profile Design: Seamlessly integrates into smart meter enclosures for unobtrusive deployment.
Bi-Directional Radiation Pattern: Enhances signal reception and transmission efficiency.
Superior Electrical Performance: Consistently strong connectivity across the entire LTE/cellular spectrum.

Ideal Applications
- Smart Utilities: Smart Power Metering, Gas & Water Metering
- Smart Buildings: Climate control, access control, security, irrigation
- Digital signage
- Smart environmental & water systems
- Industrial factory automation and M2M systems
- Warehouses & logistics systems
- Farming & agricultural M2M & IoT"
