Aprašymas

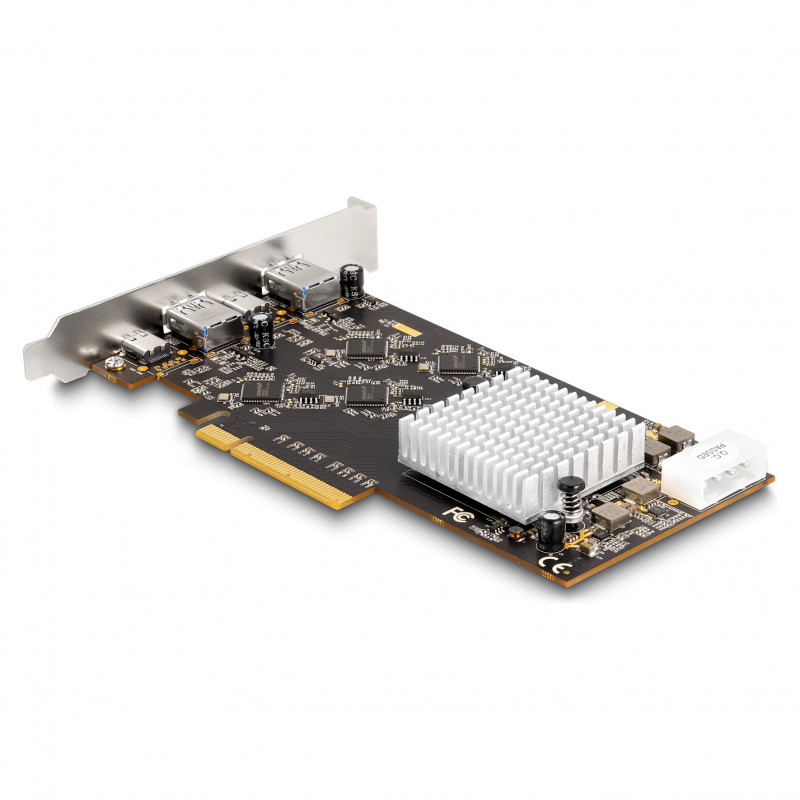

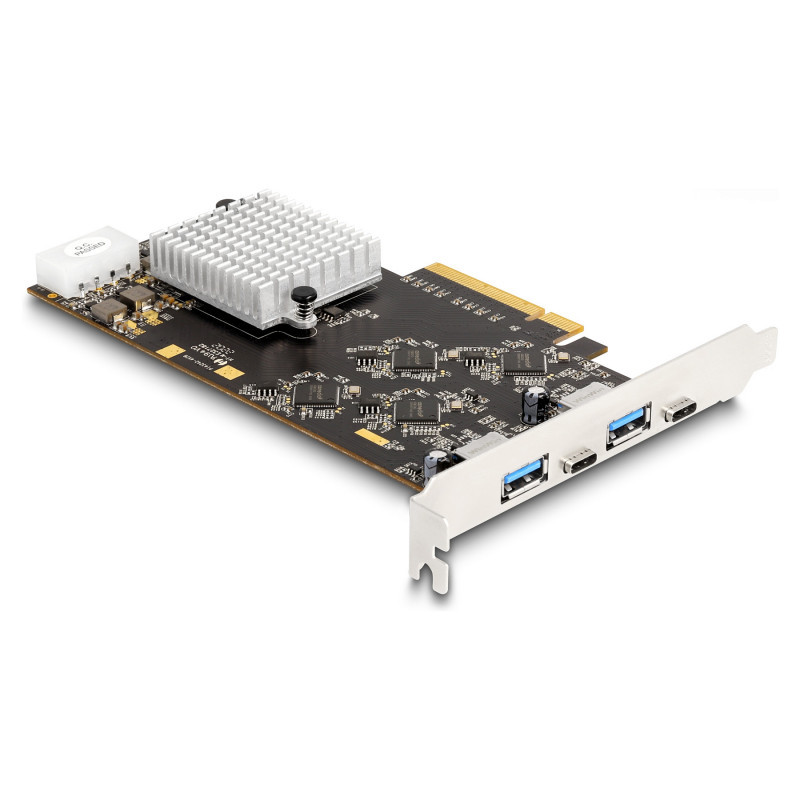

"DeLOCK PCI Express x8 Card with 2 x USB 20 Gbps USB Type-C female and 2 x USB 10 Gbps Type-A female - Quad Channel. Host interface: PCIe, Output interface: USB 3.2 Gen 2 (3.1 Gen 2), USB Type-C, Host interface gender: Male. Country of origin: China. Chipset: Pericom PI7C9X3G816GP, Data transfer rate (max): 20 Gbit/s. Output voltage: 5 V, Output current: 3 A. Windows operating systems supported: Windows 10, Windows 11, Windows 8.1, Linux operating systems supported: Linux Kernel 5.15"\n"The PCI Express card by Delock expands the PC by four external USB 3.2 ports, two USB-C™ and two USB Type-A ports. Different USB devices, such as docking stations, card readers, external enclosures etc., can be connected to the card.

Quad Channel
The card has four ASM3242 chipsets, a separate chipset for each USB connector. This ensures the high data transfer rate of 20 Gbps on the USB Type-C™ ports and 10 Gbps on the USB Type-A ports when used at the same time.

Power supply
The PCIe card can be supplied with power via the PCIe connector. If this is not sufficient, the card has a 4 pin power connector. At the USB Type-C™ ports the maximum output is 5 V / 3 A and at the Type-A ports 5 V / 0.9 A, all ports together have an output of maximum 7.8 A."
