Aprašymas

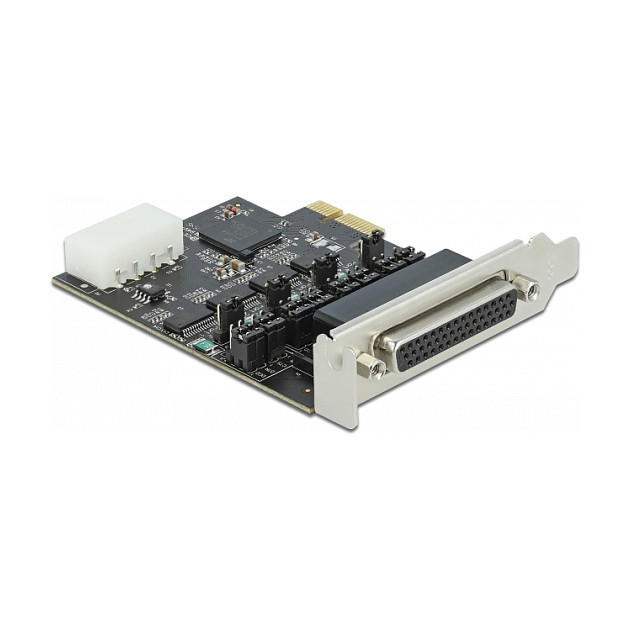

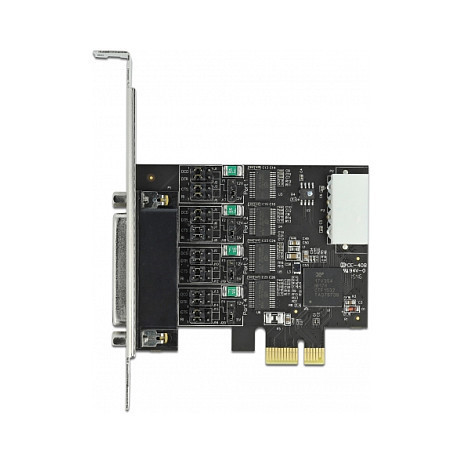

"DeLOCK PCI Express x1 Card to 4 x Serial RS-232 with voltage supply 5 V / 12 V. Host interface: PCIe, Output interface: Serial, Expansion card form factor: Low-profile. FIFO (First In, First Out): 256 B, Data bits: 5, 6, 7, 8, Stop bits: 1, 1.5, 2"\n"The PCI Express card by Delock expands a PC by four external serial ports.

Optional voltage supplies via RS-232
Connected devices can optionally be supplied with voltages of 5 V or 12 V. The following four outputs are available on the RS-232 ports: pin 1 (DCD), pin 4 (DTR), pin 8 (CTS) and pin 9 (RI).

Low Profile Form Factor
By using the included low profile bracket, the PCI Express card can be also installed into a Mini-PC."
