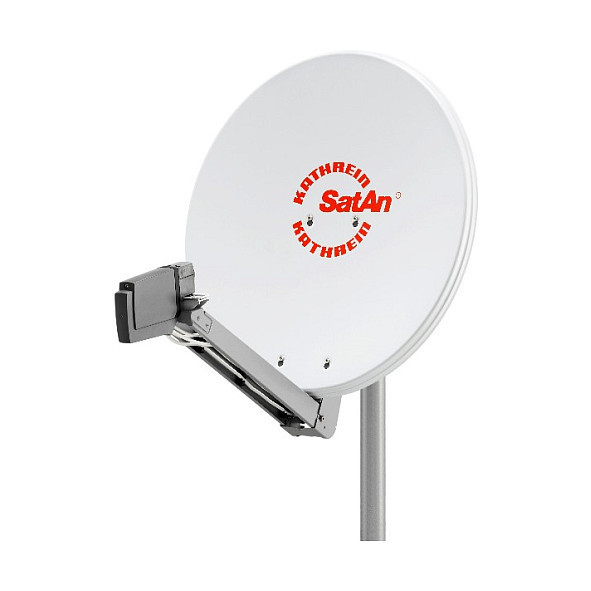

"Kathrein CAS 80ws. Frequency range: 10.70 - 12.75 GHz. Product colour: White. Diameter: 75 cm, Width: 750 mm, Height (max): 88.4 cm. Package dimensions (WxDxH): 800 x 180 x 1100 mm, Package weight: 8 kg"\n"Features
- Consists of refl ector, feed system support and mast support
- Refl ector made of aluminium, powder coated
- Feed system support made of galvanised sheet steel, plastics coated
- All connectors (screws, rivets, discs) are made of corrosion-resistant stainless steel and zinc die-casting
- Cable holder for up to 8 coaxial cables
- Threaded clamp of hot-dip galvanised steel
- High ease of installation: Completely pre-mounted, refl ector keyhole fi xing system, zinc die-cast
wing nuts, standardised hexagon size, elevation scale on both sides, minimal support arm dimensions due to fold-down feature
- Optimal electrical data in lowest mechanical dimensions due to offset-feed

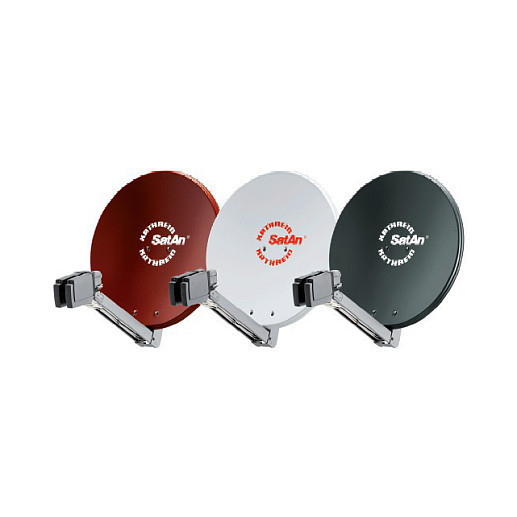

- Available in graphite-grey, white or red-brown
- TÜV design approved
- No additional components are required to be able to mount two universal feed systems to receive
the signals of satellites 3° to 4° (ASTRA 19.2°/23.5°) or 6° (e.g. ASTRA/EUTELSAT-HOTBIRD) apart on the boom For any other combination, the ZAS 90 multifeed-adaptor plate is additionally required."
