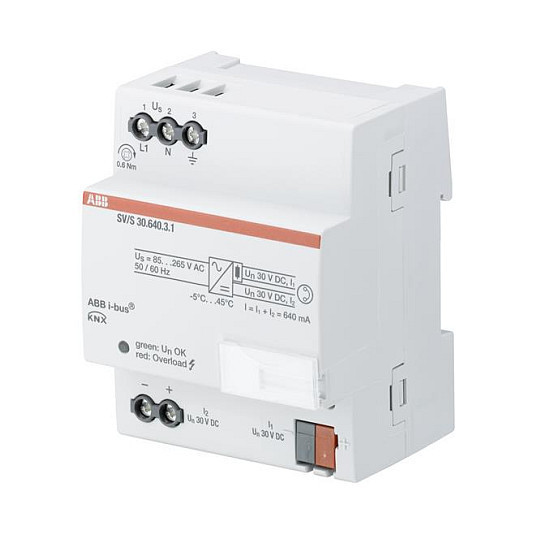

"ABB SV/S30.640.3.1. Input voltage: 85 - 265 V, Input frequency: 50/60 Hz, Output voltage: 30 V. Input operation voltage (min): 85 V, Input operation voltage (max): 265 V. Product colour: Grey, Housing material: Plastic. Certification: CE. Width: 72 mm, Depth: 64.5 mm, Height: 90 mm"\n"KNX power supplies 640 mA generate and monitor the KNX system voltage (SELV). The bus line is decoupled from the power supply by an integrated choke. The voltage output is short-circuit and overload protected. The two-color LED indicates device output status. Device type SV/S 30.640.3.1 has an additional 30 V DC short-circuit and overload protected voltage output that can be used to power an additional bus line (in combination with a separate choke). With two-coloured status indicator and wide range input from 85…265 V AC, 50/60 Hz."
