Aprašymas

"Digitus 10"" Gigabit 8-Port L2+ Managed Switch. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 8000 entries. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u. Wall mountable, Rack mounting"\n"Enables professional segmentation, prioritization and protection of networks in a compact 10"" switch.

- L2+ managed switch with extensive enterprise features
- VLAN support (port-based & 802.1Q tag-based)
- Link aggregation with up to 8 groups
- STP, RSTP and MSTP for redundant structures
- IGMP snooping & multicast management for IPTV / CCTV
- QoS with 4 queues per port for prioritized applications
- Extensive ACL support (IP, MAC, ARP)
- Versatile management interfaces: WEB, SNMP, CLI, Telnet, SSH, TACACS+, RMON
- Supports IPv6 (ICMPv6, ND, MLD Snooping, IPv6 Telnet)
- Fanless metal housing for quiet 24/7 operation

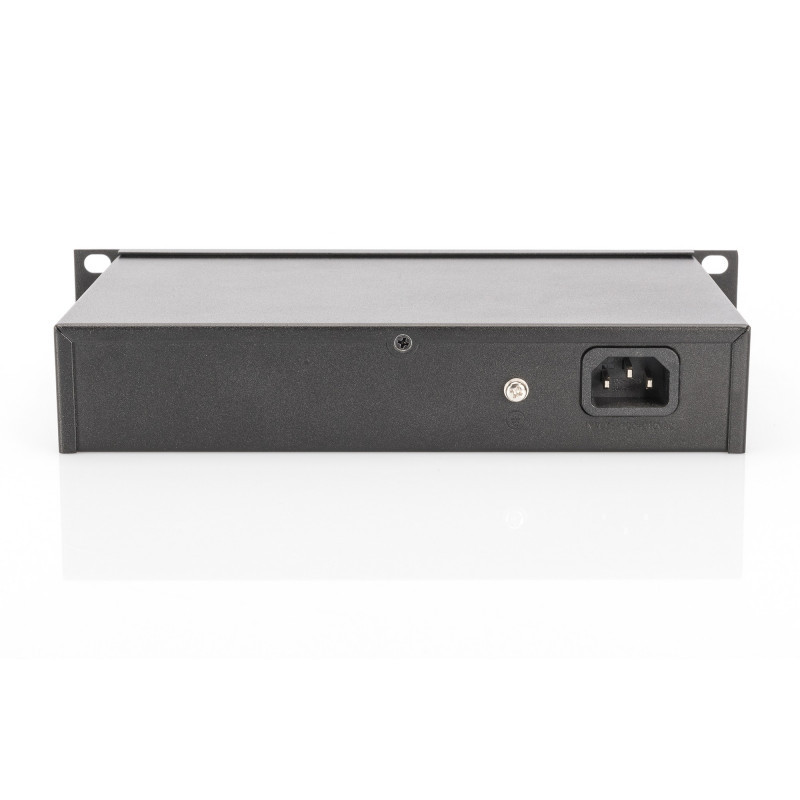

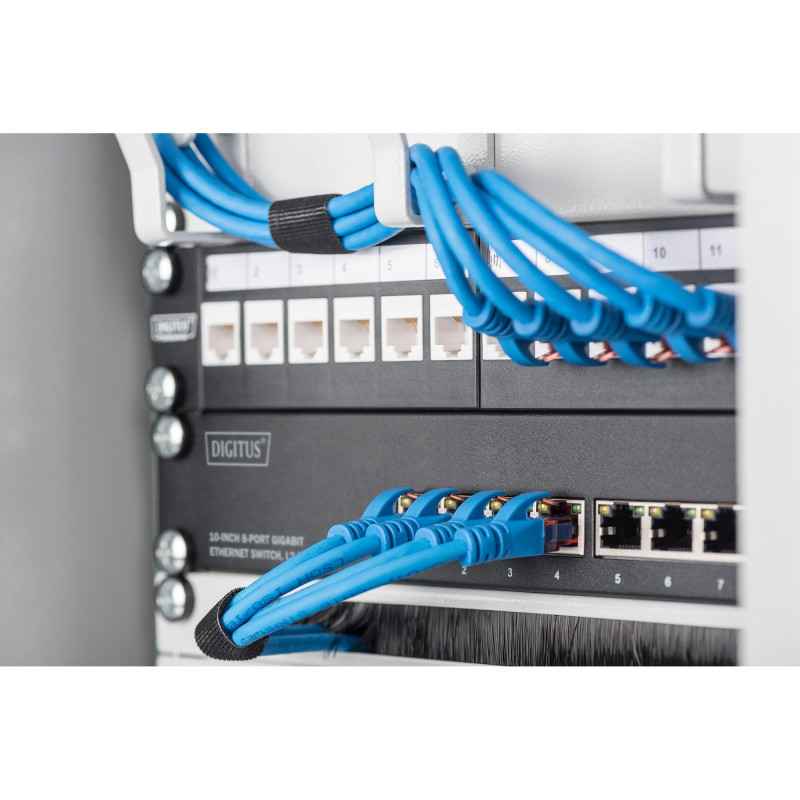

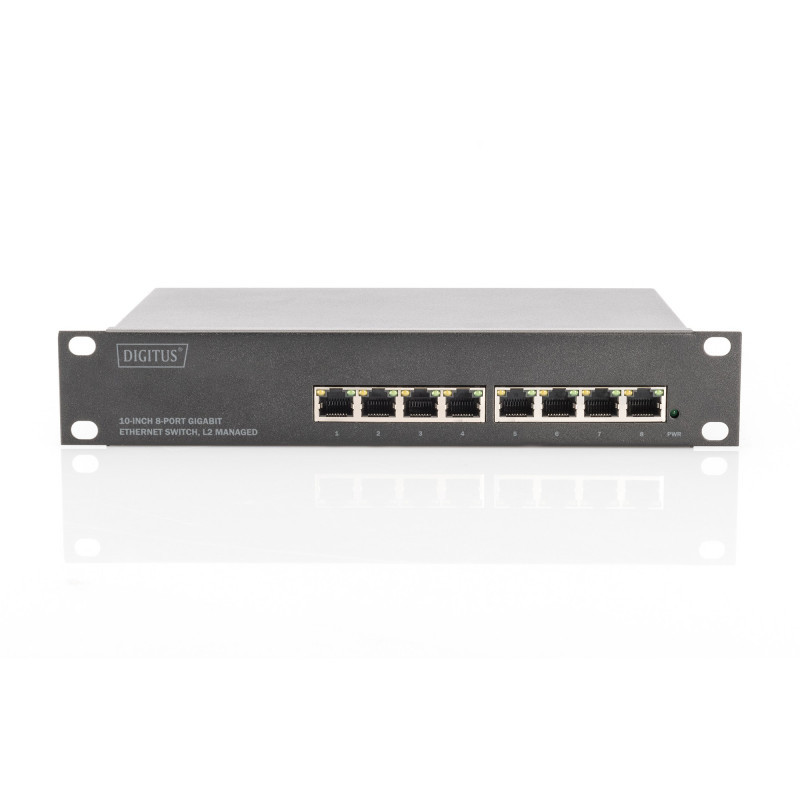

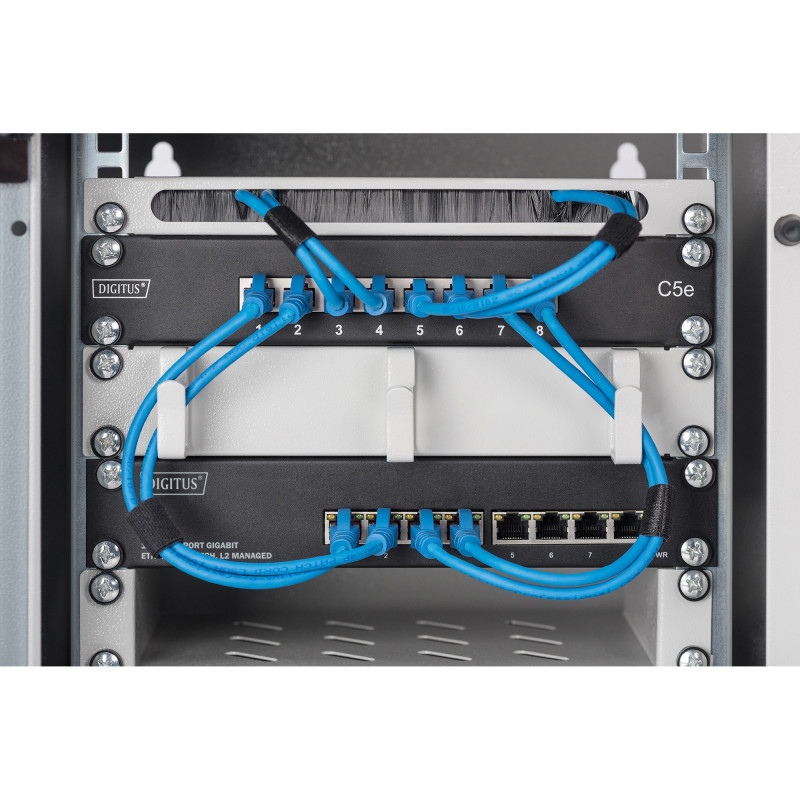

The DIGITUS® DN-80117 is a professional 8-port Gigabit L2+ managed switch in 10"" format designed for networks of small to medium-sized companies. It combines high Gigabit performance with extensive Layer 2 and Layer 2+ functions such as VLAN, QoS, link aggregation, spanning tree, multicast management and advanced security functions. With eight 10/100/1000Base-TX ports, a 16 Gbps backplane, jumbo frames up to 16 KB and a forwarding capacity of 11.9 Mpps, the switch is ideal for convergent networks with data, voice and video applications. Functions such as port control, port isolation, loop detection, port mirroring and rate limiting enable granular control of the network infrastructure. The DN-80117 also supports IPv6, IGMP snooping, MLD snooping, static routing, up to 32 VLAN interfaces and multiple authentication methods (e.g. RADIUS). It can be managed flexibly via Web GUI, SNMP, CLI, Telnet, SSH or TACACS+, making it ideal for professional IT environments. Top USP: Full L2+ management functions in a compact 10"" design for SME networks."
