Aprašymas

"Digitus 4x2 HDMI Matrix Switch / Multi-Viewer, 4K/30Hz. Product type: AV matrix switcher, Bandwidth: 10.2 Gbit/s. Housing colour: Black, Housing material: Metal, Control type: Buttons, Remote. USB connector type: Micro-USB A, Headphone connectivity: 3.5 mm. Power consumption (typical): 5 W, Output current: 1000 mA, Output voltage: 5 V. Width: 91 mm, Depth: 214 mm, Height: 18.5 mm"\n"Switch conveniently between up to 4 HDMI sources and 2 playback devices, and distribute your media content independently / Multi-viewer offers 6 modes for individual display of sources (split-screen, PIP)

- Switch between up to 4 HDMI sources and 2 playback devices via remote control, on the device itself or via RS232 control
- Multi-viewer: 6 modes for individual display of sources at HDMI output A (primary) or at HDMI output A & B simultaneously (secondary) via remote control or on the device itself
- Audio extractor: Toslink / Stereo (3.5 mm) - Decoupling / separate reproduction of the audio signal
- Max. resolution: 4K/30 Hz
- RS232 control via micro USB
- Scaler (changeover switch) - Adjustment of HDMI output resolution (1080p, 1600p, 4K/30Hz)
- Separate on/off switch
- Video bandwidth: 10.2 Gbps
- HDCP 1.4
- HDMI 1.4

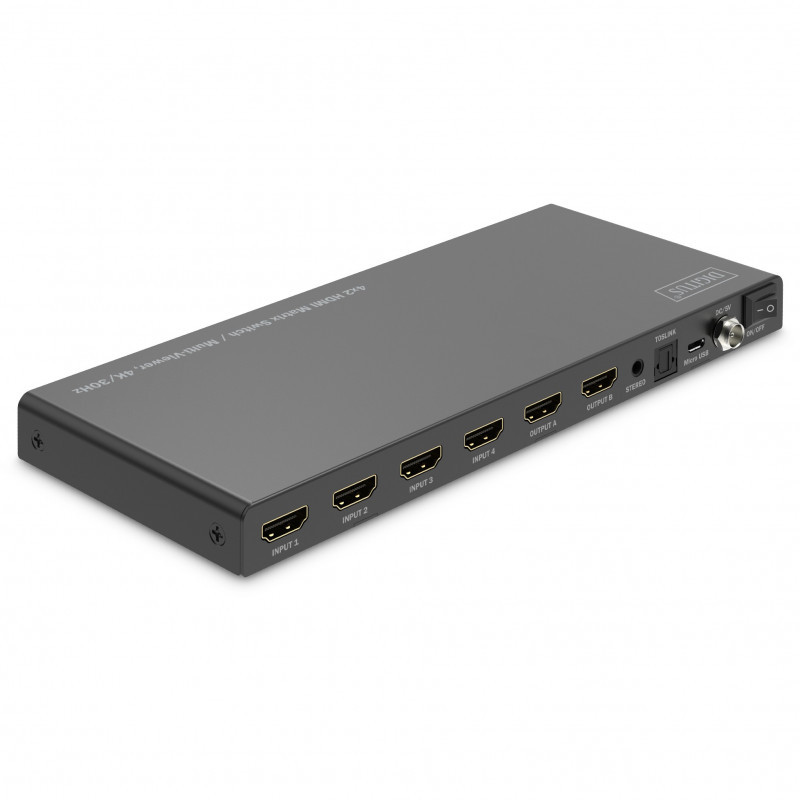

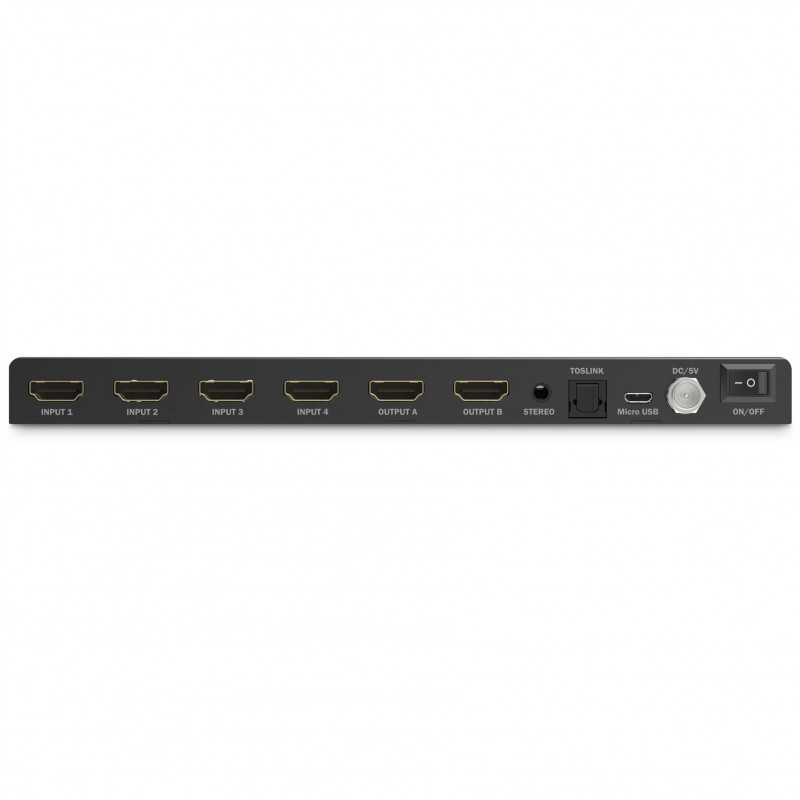

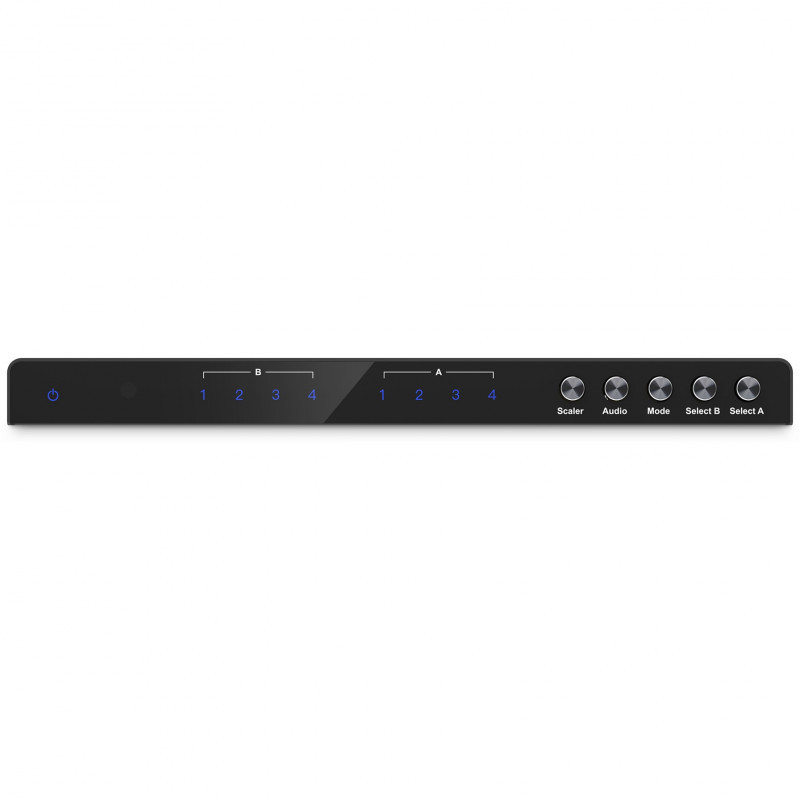

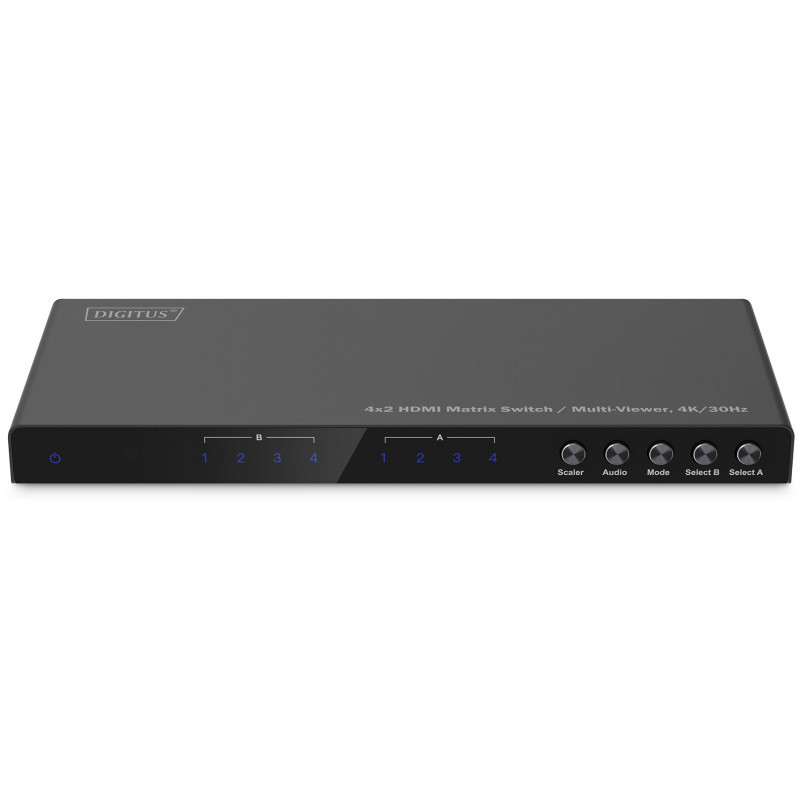

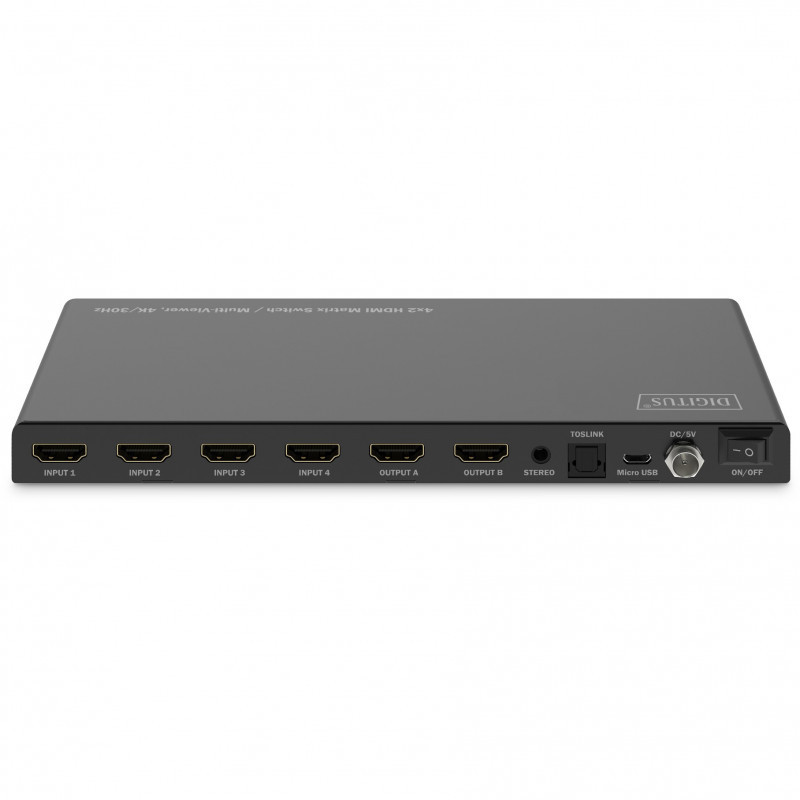

The DIGITUS® 4x2 HDMI Matrix Switch / Quad Multi-Viewer enables you to switch conveniently between up to 4 HDMI sources and 2 playback devices, and distribute your media content independently. Switch conveniently between the signal sources via remote control, on the device itself or via RS232 control. The multi-viewer function offers 6 modes for individual display of sources (split-screen, PIP) at output A or parallel at A & B. Audio signals can also be decoupled and separately reproduced via Toslink or 3.5 mm stereo connection. Supports resolutions of up to 4K/30Hz. The HDMI output resolution can be adjusted individually using a scaler."
