Aprašymas

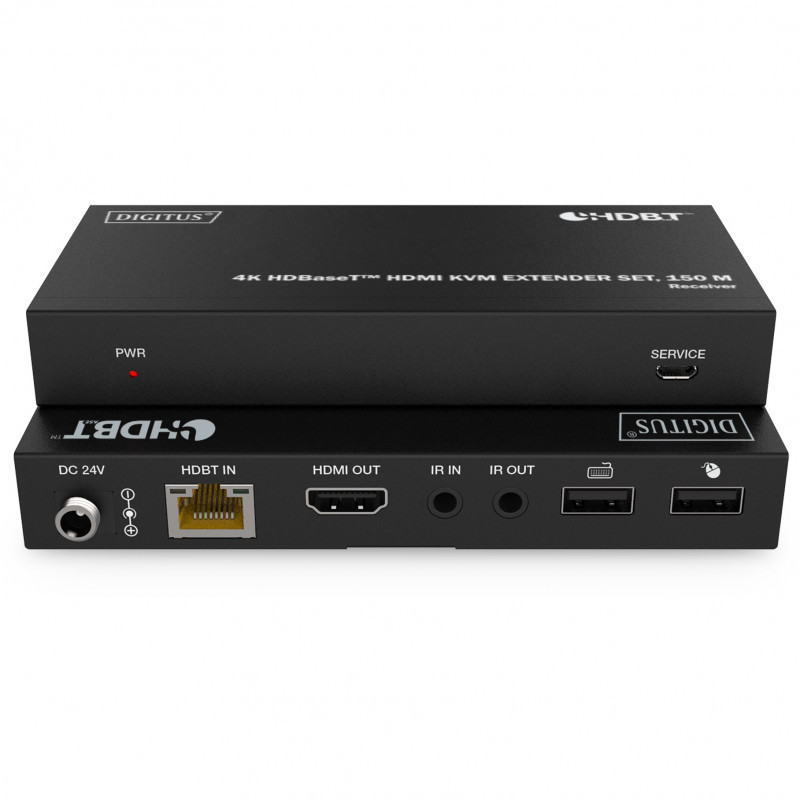

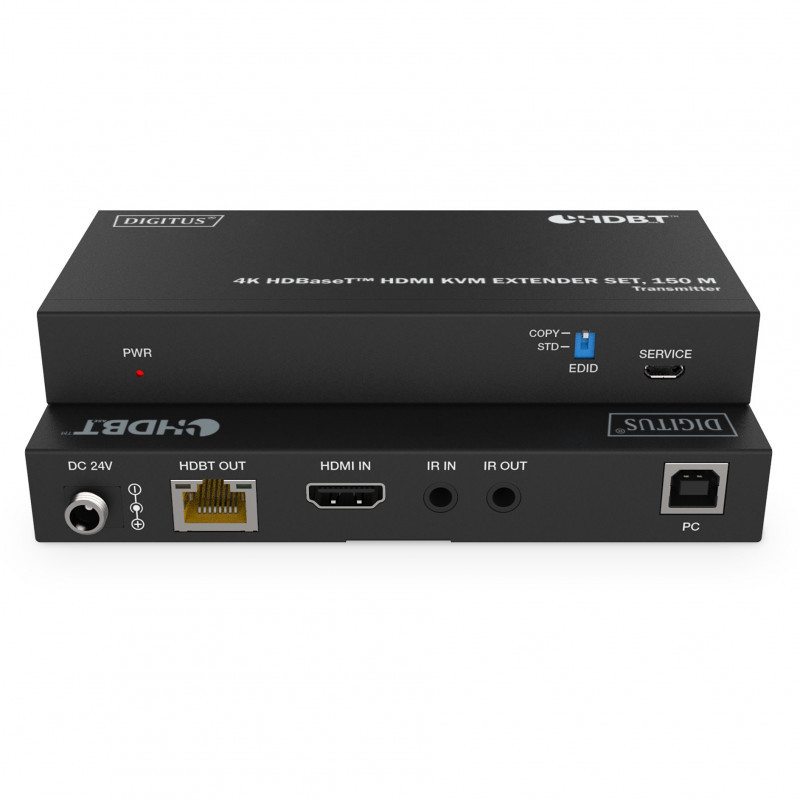

"Digitus 4K HDBaseT™ HDMI KVM extender set, 150 m. Type: Transmitter & receiver, Maximum resolution: 3840 x 2160 pixels, Cable types supported: Cat6, Cat7, Cat8. Connectivity technology: Wired, HDMI version: 2.0b, USB connector type: USB Type-A, USB Type-B. Power source type: DC, Operating voltage (transmitter): 24 V, Operating voltage (receiver): 24 V. Receiver dimensions (WxDxH): 140 x 65 x 18 mm, Receiver weight: 246 g, Transmitter dimensions (WxDxH): 140 x 65 x 18 mm. Package width: 245 mm, Package depth: 185 mm, Package height: 75 mm"\n"The HDBaseT™ Extender Set enables uncompressed and high-resolution AV signal transmission over long distances and offers KVM functionality (mouse & keyboard connection)

- Supports HDBaseT™ 1.0 via CAT6A/7/8 cable up to 100 m
- Transmission distance - Full HD (1080p/60Hz): 150 m (max.)
- Transmission distance - UHD (4K/60Hz): 120 m (max.)
- Supports 4K2K/60Hz (4:4:4)
- Video bandwidth: 18 Gbps
- Connection of mouse & keyboard to the receiver (2x USB 1.1) for convenient control of the signal source from the output display
- PoC (Power over Cable) - only one unit requires an external power supply unit
- EDID support (2 modes) - 1: Copy - HDMI output receiver / 2: Standard - 1080p, 2 channel
- Bi-directional IR signal transmission
- HDMI 2.0b / HDCP 2.2

The HDBaseT™ HDMI KVM Extender Set enables uncompressed and high-resolution AV signal transmission over long distances via a CAT6 (or higher) network cable. The maximum transmission distance is 150 m. Thanks to PoC, only one unit needs to be powered with an external power supply unit. The receiver unit has two USB (1.1) ports for connecting a mouse & keyboard to control the signal source conveniently from the output display. Bi-directional IR transmission is also included."
