Aprašymas

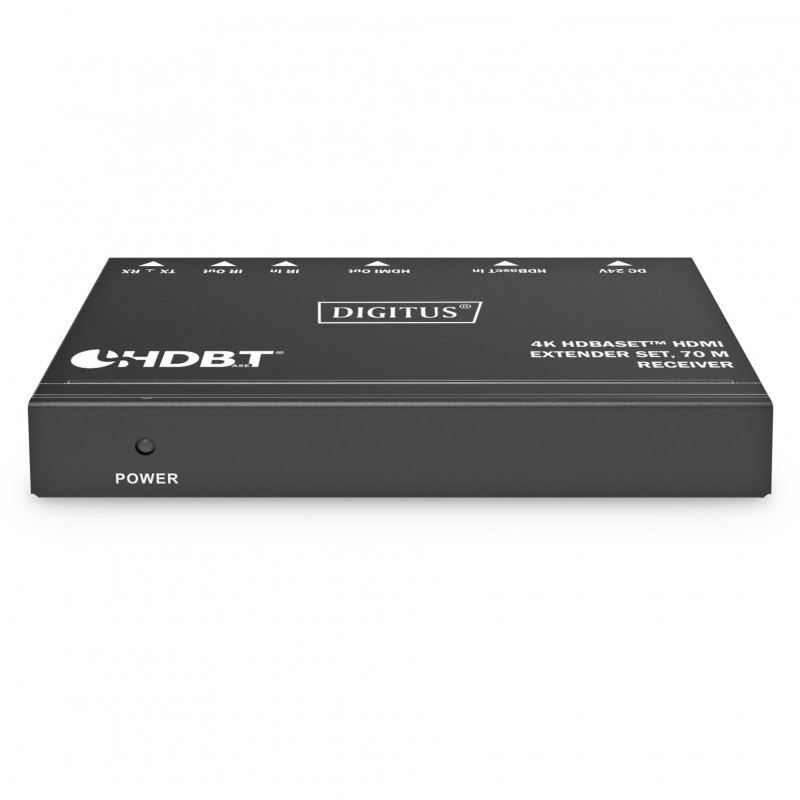

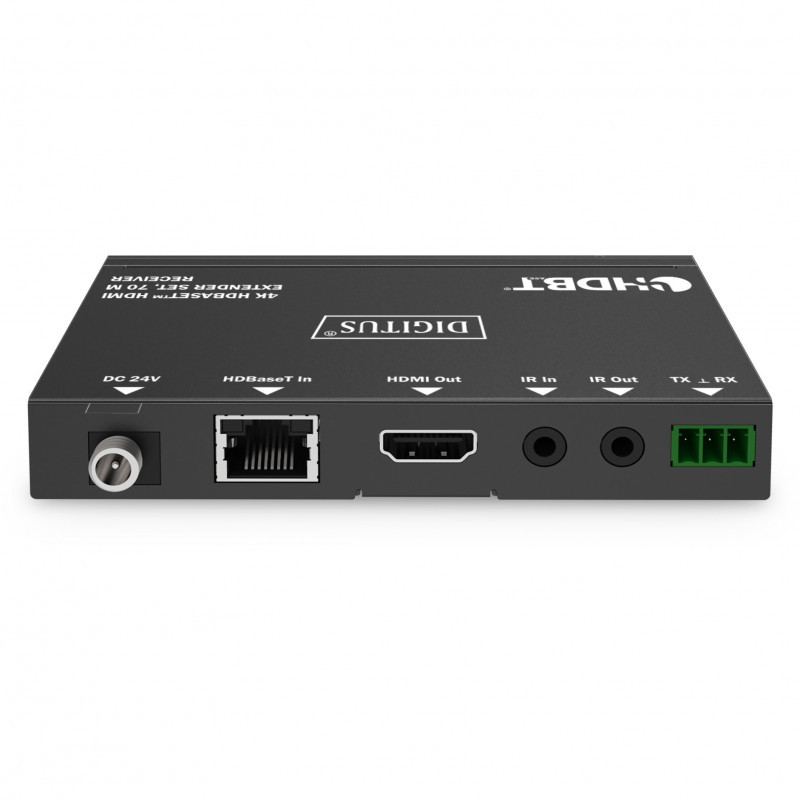

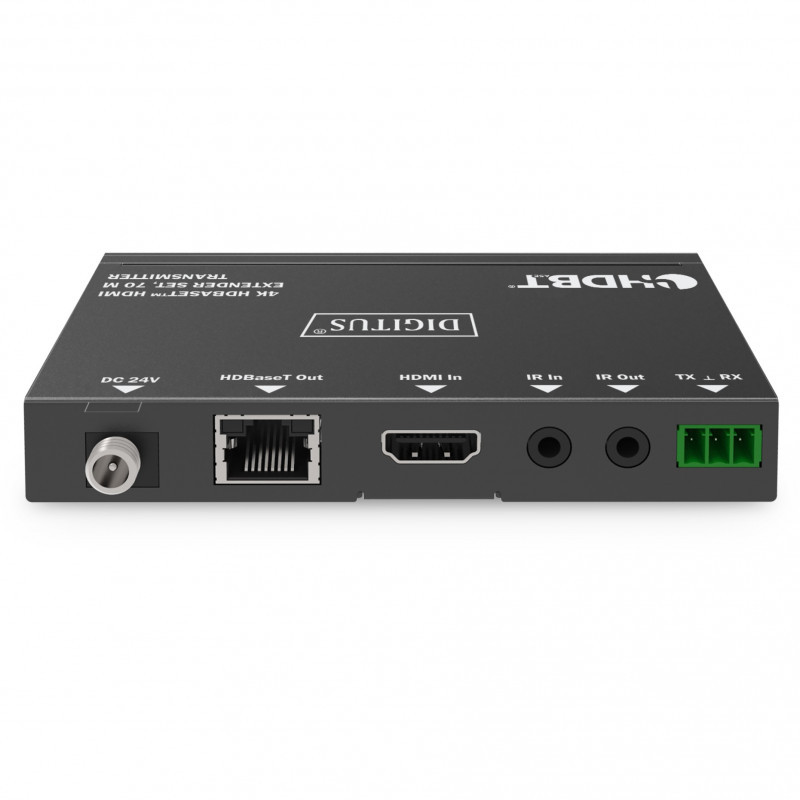

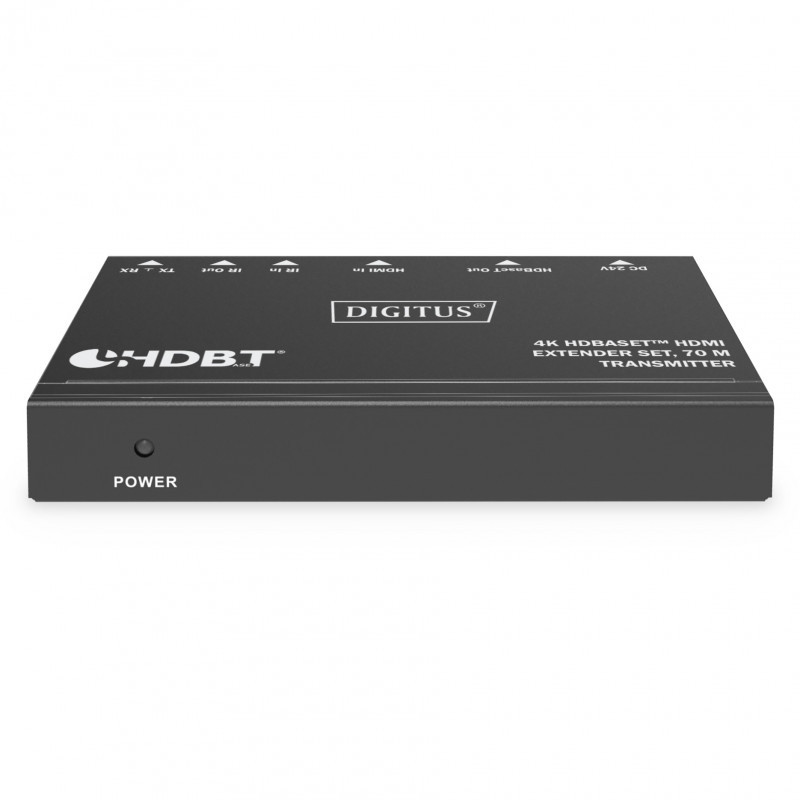

"Digitus 4K HDBaseT™ HDMI extender set, 70 m. Type: AV transmitter & receiver, Maximum resolution: 3840 x 2160 pixels, Cable types supported: Cat5e, Cat6, Cat7, Cat8. Connectivity technology: Wired, Serial interface type: RS-232. Operating voltage (transmitter): 24 V, Operating voltage (receiver): 24 V, Power consumption (transmitter) (max): 20 W. Receiver dimensions (WxDxH): 115 x 65 x 17 mm, Receiver weight: 200 g, Transmitter dimensions (WxDxH): 115 x 65 x 17 mm. Quantity per pack: 2 pc(s), Package width: 215 mm, Package depth: 155 mm"\n"The HDBaseT™ HDMI Extender Set enables uncompressed signal transmission of high-resolution AV signals over long distances

- Supports HDBaseT™ 1.0 via CAT6/7/8 cable up to 70 m
- Supports 4K2K/30Hz (24bit)
- Maximum transmission distance (UHD 4K/30Hz, CAT6 or higher): 40 m
- Maximum transmission distance (Full HD, 1080p, CAT6 or higher): 70 m
- PoC (Power over Cable) - only one unit requires an external power supply unit
- Bi-directional IR signal transmission
- Bi-directional RS232 signal transmission
- HDCP 2.2 / 1.4
- Video bandwidth: 10.2 Gbps

The HDBaseT™ Extender Set extends Full HD AV signals to a distance of up to 70 m, 4K/30Hz signals can be extended to a distance of up to 40 m via a CAT6 (or higher) network cable. Thanks to PoC (Power over Cable), only one unit needs to be supplied with power via an external power supply unit. The scope of services also includes bi-directional IR and RS232 signal transmission."
