Aprašymas

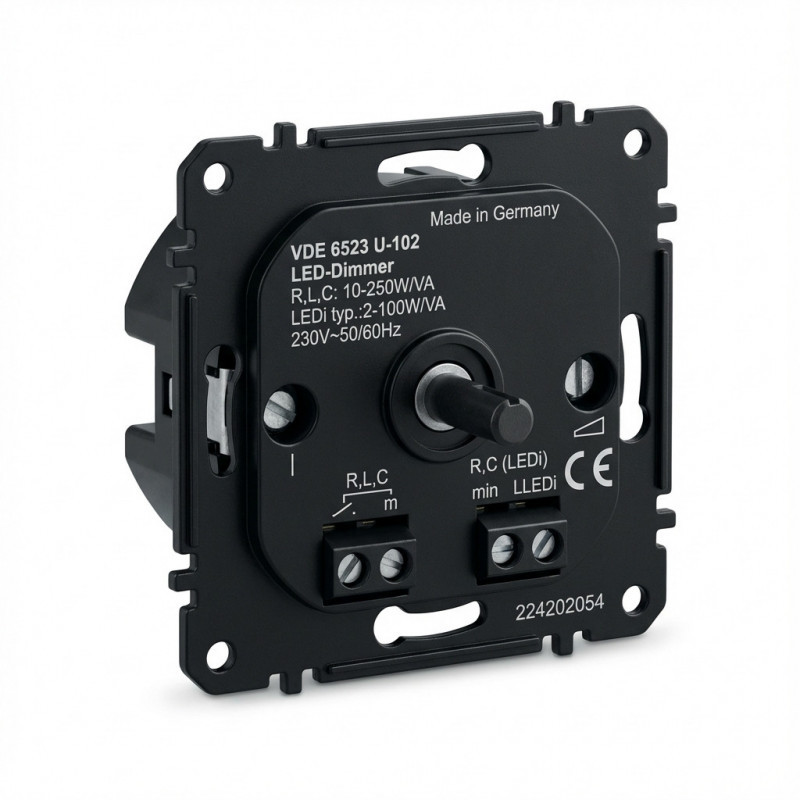

"Busch-Jaeger 6523 U-102. Type: Dimmer. Case design: Mountable, Control type: Rotary, Product colour: Black. AC input voltage: 230 V, AC input frequency: 50 - 60 Hz, Resistive load (max): 100 W"\n"With rotary control, two-way switch and soft-catch.
2-wire connection (neutral conductor not required)
Optimised for dimming of retrofit LED lamps (LEDi).
For dimmable Retrofit-LEDs (LEDi).
For dimmable Retrofit-LEDs (LEDi) with conventional or electronic transformers.
For incandescent lamps, 230 V tungsten halogen lamps, low-voltage halogen lamps with conventional or electronic transformers and dimmable energy-saving halogen lamps.
Mix operaton of LEDi with conventional loads possible.
Via mode switch adjustable between leading edge control and trailing edge control.
Low-noise level by MOSFET transistors.
With electronic short-circuit protection. With electronic overload protection.
With adjustable minimum brightness.
Without cover plate.
Rated voltage: 230 V~, + 10% / - 10%
Rated frequency: 50 Hz/60 Hz
Nominal power: 2 - 100 W/VA (retrofit LED loads).
Nominal power: 10 - 250 W/VA (non-LED loads).

Protection class (Device): IP 20
Temperature range (Device): 0 °C to 35 °C

Illuminable with neon lamp. Neon lamp included in delivery with cover plate.
In the case of conventional transformers, take ~20% transformer loss into account.
In case of electronic transformers, 5 % transformer losses.
Also applicable for 1gang 2way installations.
Provided with terminal for net disconnection devices.
Only in conjunction with standard flush-mounting boxes according to DIN 49073, Part 1, erect or Busch-Jaeger No. 3040 wallbox stonework, 3050 wallbox cavity wall or 3060 wallbox concrete)"
