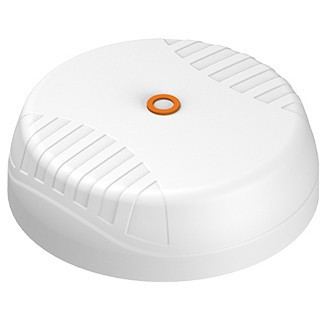

"Poynting SWIRL-8. Antenna gain level (max): 6 dBi, Frequency band: 0.617 - 6 GHz, Impedance: 50 Ω. Antenna type: Omni-directional antenna, Antenna connector type: SMA, Connector gender: Male. Power source type: DC, Input voltage: 2.7 - 3.3 V. Compliance certificates: CE, RoHS, Certification: CE, RoHS. Height: 127 mm, Diameter: 38.2 cm, Weight: 2.55 kg"\n"The SWIRL-8-01 is the antenna-only version of the SWIRL that integrates:

Eight cross-polarized cellular antennas: covering a wide range of LTE and 5G frequency bands from 617 to 6000 MHz
Four dual-band Wi-Fi antennas: Supporting 2.4 GHz and 5 to 7.2 GHz bands for optimal wireless coverage
One dual-band GNSS antenna: Covering GPS L1 and L5 bands for fast and precise positioning

Additional Benefits
1. Router Agnostic: SWIRL-8-01 is a great choice for users who prefer the flexibility to use any router. The antenna system is compatible with most commercially available routers, offering adaptability and future-proofing for evolving networking needs. This allows users to easily swap routers or upgrade them without replacing the antenna.

2. Custom Deployment: In environments where the user already has an established setup or specific router preferences, the antenna-only configuration offers seamless integration. It allows users to take full advantage of their preferred networking hardware without being constrained to any one system

3. Compact Design: SWIRL-8-01 features a compact design with dimensions of 382 mm / 15.04 inch in diameter and 127 mm / 5 inch in height.

4. Additionally, the SWIRL can be transformed into a Customer Premises Equipment (CPE) device by incorporating the SWIRL-BASE. This cast aluminium base is specifically designed to house 5G routers, available in sizes of 231 x 193 x 50 mm / 9.094 x 7.60 x 1.97 inch or 293.5 x 148.5 x 50 mm / 11.56 x 5.85 x 1.97 inch. Installing the router within the base reduces coaxial cable runs, thereby improving performance by minimizing signal loss."
