Aprašymas

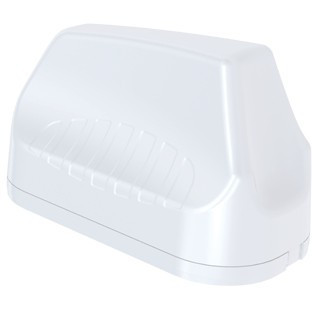

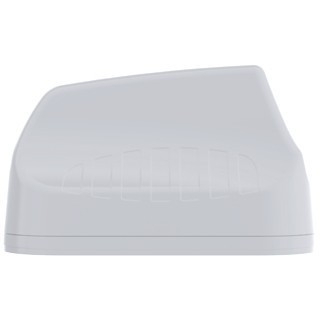

"Poynting A-MIMO-0003-V2-13. Antenna gain level (max): 5.8 dBi, Frequency band: 3400 – 3800, Gain: 21 dBi. Antenna type: Omni-directional antenna, Antenna connector type: SMA, Connector gender: Male. Power consumption (max): 50 W, Input voltage: 2.7 - 3.3 V. Compliance certificates: CE, RoHS. Width: 253 mm, Depth: 128 mm, Height: 144 mm"\n"The MIMO-3-13 is a high-performance 3-in-1 multi-frequency antenna housed in a single enclosure, providing two cellular MIMO antennas and a GPS/GLONASS antenna. Designed for seamless 2G, 3G, 4G, and emerging 5G connectivity, it supports a wide frequency range from 617 MHz to 2700 MHz, as well as the new 450 MHz and 3.5 GHz CBRS bands. This ultra-wideband performance ensures compatibility with multiple network operators and future cellular technologies up to 3.8 GHz.

- Ultra-Wideband Cellular Coverage: Supports frequencies from 617 MHz to 3.8 GHz, covering LTE and 5G applications.
- Advanced 2x2 MIMO Technology: Provides enhanced signal strength, pattern diversity, and omnidirectional coverage.
- Integrated GPS/GLONASS Antenna: High-performance active GPS system for accurate positioning, operational down to -40°C.
- Optimised for Transportation & Marine Use: Engineered to meet the rigorous demands of commercial vehicles, marine, and industrial applications.
- Futureproof Connectivity: Ensures long-term compatibility with evolving cellular networks and IoT applications.
- Superior Radiation Performance: Designed for an optimal balance between omnidirectionality, diversity, and signal propagation.
The MIMO-3-13 is the ideal solution for transportation, marine, M2M, and IoT applications, delivering exceptional performance, durability, and future-ready connectivity across multiple frequency bands.

Ideal Applications

- Transport broadband, automation and telemetry for buses, utility, trucks and public safety vehicles
- Farming & agricultural automation such as M2M & IoT
- Mining vehicles and machinery communications, telemetry and automation (M2M & IoT)
- Industrial factory automation, robotic machinery and other M2M systems telemetry
- Broadband cellular distribution for marine / boats (inland and near coastal vessels)"
